UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V

Product Categories
Guangdong Shineplus Connection Technology Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V

  • 1
  • 2

MOQ : 1000m

Delivery Time : 3-4 Weeks

Temperature : 80℃

Name : Robot Wire and Cable

Certification : RoHS Reach

Jacket : PVC

Model Number : UL2464

Insulation : PVC

Payment Terms : T/T,L/C,Western Union

Packing : Packed in Rolls or Reels

Price : To be negotiated

Application : Robot Manipulator

Supply Ability : 100km per day

SP : 1702190

Brand Name : Shineplus

Conductor : Bare Copper Stranded

Packaging Details : Packed in rolls or reels

Place of Origin : China

Voltage : 300V

Contact Now

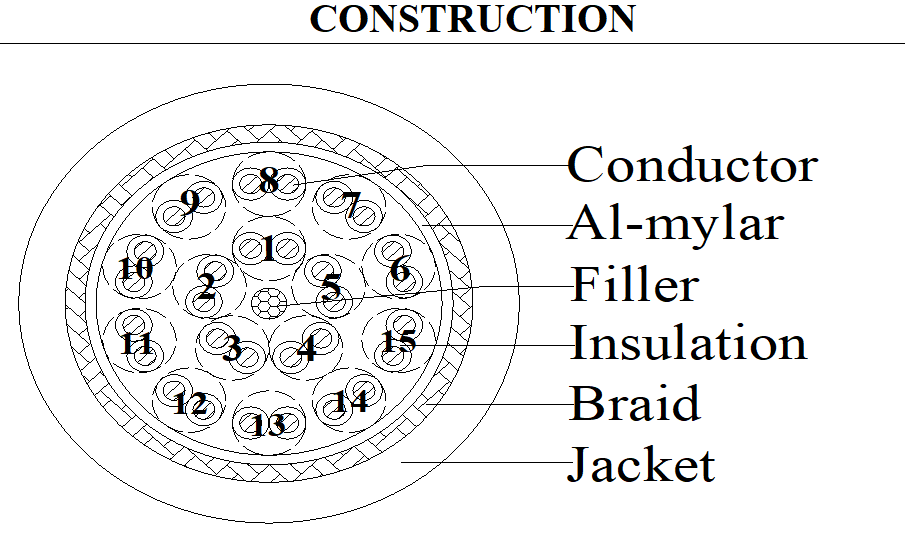

UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded with PVC Insulation and PVC Jacket 300V

ITEM 15P×0.22mm2(32/0.10B)+AB
CONDUCTOR Material Bare copper stranded
Size 32/0.10±0.008mm
O.D.(Ref) 0.65mm
INSULATION Material PVC
Min.average thickness 0.40mm
Min.thickness at any point 0.36mm
O.D. 1.45±0.08mm
TWISTED O.D.(Ref) 2.90mm
CABLING Filler cotton
Material Al-mylar(face out)
Assembly 15P×0.22mm2(32/0.10B)+A
BRAID Material Tinned copper
Size 0.12mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 13.00±0.35mm

Application:For internal wires of industrial control equipment and robot manipulators

This product is suitable for high speed drag chain, bending and high strength applications such as miniaturized linear motors.

Electric Performance:

Rated Temperature:80℃

Voltage rating:300V

Max.conductor DC resistance(20℃):223Ω/km

Dielectric Strength AC:2.0kV/1min

Mechanical Performance:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength:≥70%

Percent of original elongation:≥65%

Bending test: bending radius:75mm,20times/min,400000 cycles min

Rotation :20times/min.,torsion +/- 130° @1000mm, 400000 cycles min.

UL2464 15P×0.22mm2 Robot Cable Bare Copper Stranded Wire 300V
