UL20276 Tinned Copper Stranded 60P×24AWG(7/0.20T)+AB Semiconductor Cable with PE Insulation PVC Jacket VW-1
| ITEM |
60P×24AWG(7/0.20T)+AB |
| CONDUCTOR |
Material |
Tinned copper stranded |
| Size |
7/0.20±0.008mm |
| O.D.(Ref) |
0.60mm |
| INSULATION |
Material |
PE |
| Min.average thickness |
0.18mm |
| Min.thickness at any point |
0.13mm |
| O.D. |
1.00±0.05mm |
| TWISTED |
O.D.(Ref) |
2.00mm |
| Pitch |
Max. 30mm |
| CABLING |
Filler |
PVC bar |
| Material |
AL-mylar(face out) |
| Assembly |
60P×24AWG(7/0.20T)+A |
| BRAID |
Material |
Tinned copper |
| Size |
24/14/0.15mm,≥80% |
| JACKET |
Material |
Non-woven |
| Material |
PVC |
| Min.average thickness |
1.52mm |
| Min.thickness at any point |
1.22mm |
| O.D. |
18.80±0.60mm |
Application:Semiconductor fabrication, testing, and research laboratories
ELECTRICAL CHARACTERISTICS
Rated voltage:30V
Rated temperature:80℃
Max. DC conductor resistance(20℃):94.2Ω/km
Voltage withstand test:AC 0.5kV/1min
PHYSICAL PROPERTIES
Tensile strength:≥10.3MPa
Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength:≥70%
Percent of original elongation:≥65%
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates

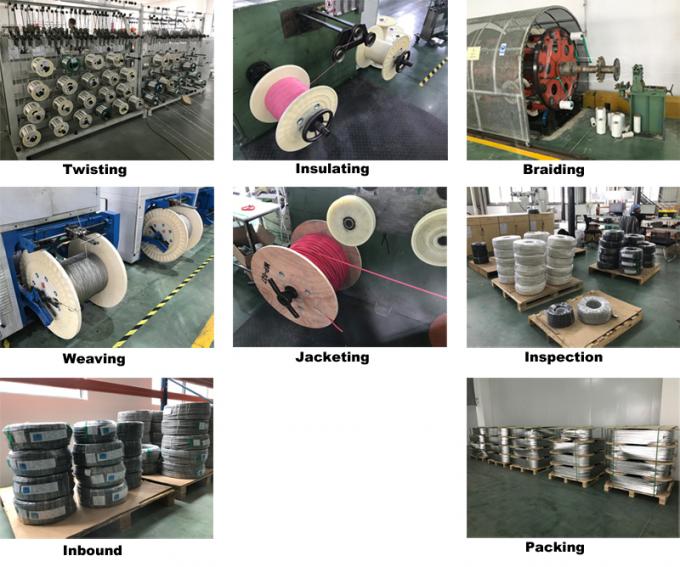

Production Progress
