3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517

Name: 3Cx034mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
Brand: Shineplus
Price: 1 USD

Quality 3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517 for sale

Voltage : 300V

SP : 2101320

Certification : RoHS Reach

Place of Origin : China

Price : To be negotiated

Insulation : PVC

Brand Name : Shineplus

MOQ : 1000m

Model Number : UL2517

Conductor : Bare Copper Stranded

Application : Industrial,comsumer Electrics,etc

Temperature : -40~105℃

Supply Ability : 100km per day

Delivery Time : 3-4 Weeks

Packing : Packed in rolls or reels

Payment Terms : T/T,L/C,Western Union

Name : Bare Copper Wire

Packaging Details : Packed in rolls or reels

Jacket : PVC

Contact Now

UL2517 3Cx0.34mm2 Bare Copper Stranded Industrial Flexible Cable with PVC Insulation PVC Jacket

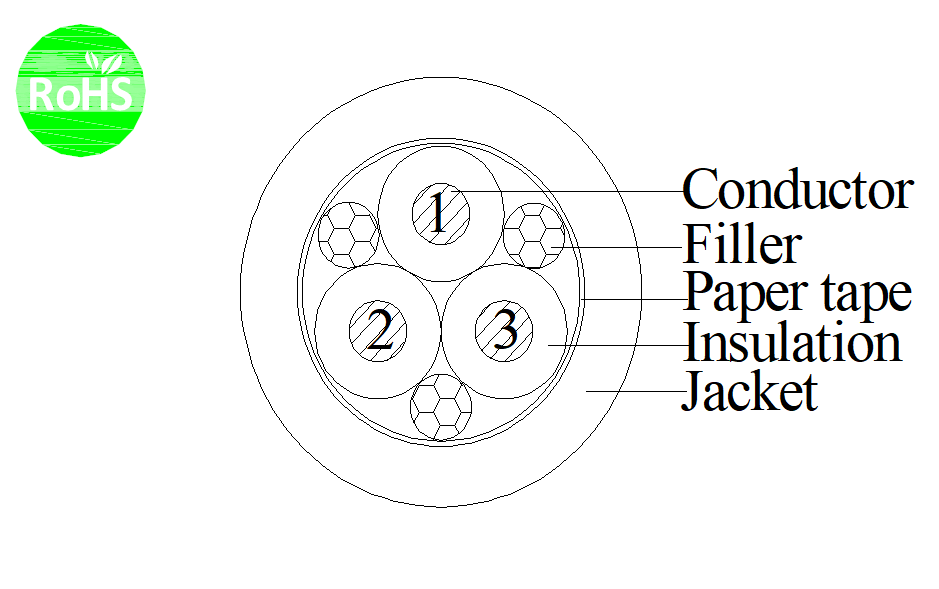

Construction

Conductor			Bare copper stranded
Cross section			0.34mm2
Construction			65/0.08mm
Strand Dia.			0.74mm
Insulation			PVC
Nom.Thickness			0.23mm
Min.Thickness			0.18mm
Insulation Dia.			1.25±0.10mm
Insulation colour			1.brown 2.blue 3.black
Filler			Optional
Material			Paper tape,≥25%
Assembly			3Cx0.34mm2+P
Jacket			PVC
Nom.Thickness			0.76mm
Min.Thickness			0.61mm
Outer Dia.			4.50±0.15mm

Application: Internal wring or external interconnection of electronic equipment.

These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines.

Product character:

Tensile strength:≥10.3MPa

Elongation:≥100%

Aged condition:136±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%

Drag chain test:1m,bend radius 100mm,40times/min,≥200 0000.

Technical data
Rated voltage:300V
Rated Temperature: -40~105℃
Max.conductor DC resistance(20℃):55.4Ω/km
Dielectric Strength AC:2.0kV/1min

Standards
International:UL2517
RoHS

VW-1

FT1

3Cx0.34mm2 Bare Copper Wire 300V Copper Stranded Cable UL2517
